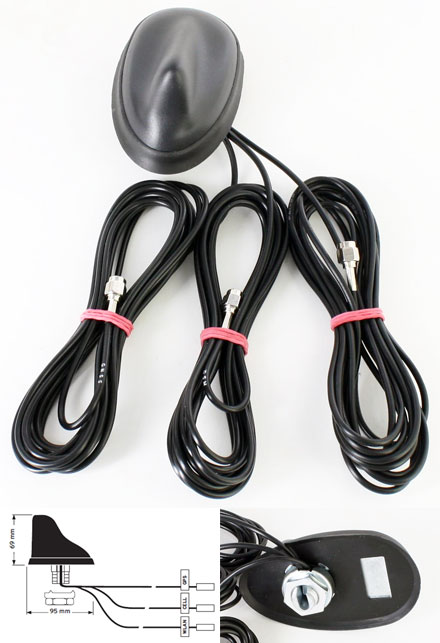

Hirschmann GPS 2400 CELLULAR (Triple vehicle root antenna, 3x FME female 3m, GPS/GLONASS/GSM/UMTS/LTE/WLAN/BT) [955181003]

Hirschmann GPS 2400 CELLULAR (Triple vehicle root antenna, 3x FME female 3m, GPS/GLONASS/GSM/UMTS/LTE/WLAN/BT) [955181003]
  • GPS//GLONASS/GSM/UMTS/3G !
  • WLAN / Bluetooth !
  • Active antenna !
  • FME connectors !

Combined Roof mount antenna "CGNW 702659 SF S/FME/3.0" for Fleet management systems, Navigation, Telematics applications in association with WLAN. Successor model of art. 602392001 and 955001003.



Share

109.95 EUR
incl. 19% VAT, plus shipping
In Stock (24 pcs)

5 von 5 Sternen
1 ratings

Add to cart
Environmental conditions
Temperature range -40° - +85° C
Protection class IP 6k9K (acc. ISO 20653)
Mechanical construction
Housing material PA6
Weight 178 g
Dimensions (W x H x D) 95 x 57 x 72 mm
Installation
Tightening torque max. 5 Nm
GNSS (GPS/GLONASS)
Frequency range GPS: 1,575 MHz - 1610 MHz
GLONASS: 1602,0 - 1614,94 MHz
Return loss (VSWR) > 12 dB
Impendance 50 Ohm
Gain typ. 2 dBic
Amplification 27 dB +-3 dB
Noise figure < 1,9 +- 0,3 dB
Voltage supply 2,9 - 5,5 VDC (ferngespeist)
Current consumption <=12 mA +/- 3 mA at 3,3 V
Cable type RG 174
Cable length 3000 mm
Connector FME female
CELLULAR
Frequency range LTE-LB: 698-862 Mhz
LTE-HB: 2305-2690 Mhz
GSM 850: 824 - 894 MHz
GSM 900: 880 - 960 MHz
GSM 1800: 1710 - 1880 MHz
GSM 1900: 1850 - 1990 MHz
UMTS: 1920- 2170 MHz
Impedance 50 Ohm
Return loss (VSWR) > 12 dB
Decoupling > 40 dB
Rod wave 1/4
Rod gain 2,5 dBi
Cable type RG 174
Cable length 3000 mm
Connector FME female
WLAN
Frequency range Bluetooth: 2400 - 2484 MHz
IEEE Std. 802.11b/g: 2412 - 2484 MHz
IEEE Std. 802.11p: 5755-5925 Mhz
Impedance 50 Ohm
Return loss (VSWR) > 12 dB
Gain 2.5 dBi @ 2.4 GHz; +3 dBi @ 5.8 GHz
Load capacity max. 1 W (acc. IEEE 802.11b/g)
Cable type RG 174
Cable length 3000 mm
Connector FME female
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 1 ratings
5 von 5 Sternen from Reitergast am 24.01.2015 | | See all my comments

Super Qualität!
