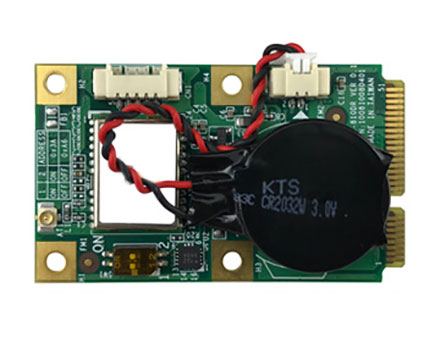

VDB-810DR Mini-PCIe GPS (u-blox M8 GPS/QZSS+GLONASS+BeiDou, G-Sensor, Untethered Dead Reckoning)

VDB-810DR Mini-PCIe GPS (u-blox M8 GPS/QZSS+GLONASS+BeiDou, G-Sensor, Untethered Dead Reckoning)
  • GPS/QZSS, GLONASS, BeiDou !
  • 72-channels !
  • -167dBm SuperSense !
  • 10 Hz Update Rate !

Embedded u-blox NEO-M8U GPS with Untethered Dead Reckoning UDR & G-Sensor Mini PCIe Card

Features :
u-blox 72-channel NEO-M8U UDR module including 3D inertial sensorsengine
GNSS data is available in NMEA, UBX & RTCM protocols
Max. 20Hz Navigation update rate
Position accuracy 2m CEP
Temperature range: -40 to +85°C
Mini PCIe Signal Type USB2.0
Standard Full/Half-size Mini PCIe Card connect to computer easily


Share

139.95 EUR
incl. 19% VAT, plus shipping
In Stock (45 pcs)

5 von 5 Sternen
1 ratings

Add to cart
Specifications
Receiver Type
Chipset NEO-M8U
Frequency GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1-SAIF, GLONASS L1OF, BeiDou B1I, Galileo E1B/C
Channels Supports 72 Channels
GNSS Center Frequency BeiDou : 1561.098 MHz, GPS : 1575.42 MHz, Glonass : 1602.5625
Sensitivity

GPS&GLONASS; GPS GLONASS Beidou Galileo
-160dBm -160dBm. -160dBm -160dBm -154dBm
-160dBm -159dBm -156dBm -155dBm -152dBm
-148dBm -147dBm -145dBm -143dBm -153dBm
-157dBm -156dBm -155dBm -155dBm -151dBm
Tracking & Navigation
Reacquisition
Cold Start
Hot Start
Time to First Fix (TTFF)

GPS&GLONASS; GPS GLONASS Beidou Galileo
26 Sec. 30 Sec. 31 Sec. 39 Sec. 57 Sec.
1 Sec. 1 Sec. 1 Sec. 1 Sec. 1 Sec.
3 Sec. 3 Sec. 3 Sec. 7 Sec. 7 Sec.
Cold Start
Hot Start
Aided Starts
Accuracy
Horizontal Position
GPS&GLONASS; GPS GLONASS Beidou Galileo
2.5m 2.5m 4m 3m TBC
Velocity Accuracy 0.5 m/s type
Heading Accuracy 1 degrees type
I/O Port 1 x Timepulse (connector type: 1 x 5pins pitch 1.27mm 90 degree)
1 x Battery Backup (connector type: 1 x 2pins pitch 1.27mm 180 degree)
Max Navigation 99% <60ns
Update Rate Typical : 1Hz Max. : 20Hz (Configurable)
Operational Limits
Dynamices <= 4g
Altitude 50,000 m
Velocity 500 m/s
Output Message Format
GPS Protocol NMEA, UBX Binary, GGA, GLL, GSA, GSV, RMC, VTG, TXT
Multipath Suppression
Type Intelligent multipath detection and suppression
G-Sensor
Type 3-axis accelerometer
A-GPS
Type Supports AssistNow® Online and Offline, OMA SUPL Compliant
Environmental Characteristics
Operating Temp. -40ºC to +85ºC
Storage Temp. -40ºC to +85ºC
Peak Supply Current Max=150mA
Max Performance Acquisition =67mA
Eco Mode Tracking = 29mA
Power Input 3.3V +-10% VDC input
Dimensions 51 x 30 (mm)
Ordering Information
Part Number VDB-810DR-000
Description Embedded u-blox NEO-M8U GPS with Untethered Dead Reckoning UDR & G-Sensor Mini PCIe Card
Data sheet Download (PDF)
Data sheet Print view
Manual [EN] Download (PDF)
