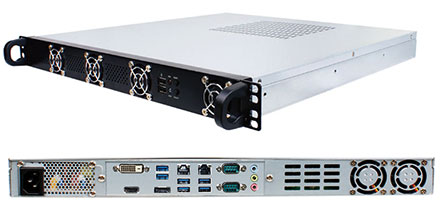

Jetway JBC161F594-Q170-S (Intel Q170)

PRODUCT IS CURRENTLY NOT AVAILABLE !

2 * SO-DIMM DDR4 2133MHz up to 32GB
1 * HDMI, 1 * DP, 1 * 2.5″ Device, 4 * 3.5″ Device
Form Factor: 430 x 467 x 44mm
AC 90~240V_300W FLEX Power

999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

RAM :

Product Dimension	– 430 (W) * 467 (D) * 44 (H) mm
Product Model	– JBC161F594-Q170-S
MB Model	– JNF594-Q170 (Mini-itx / 170 * 170 mm) – CPU : INTEL Core i7/i5/i3/Pentium/Celeron Processor / LGA1150 – Chipset : Intel Q170 Chipset – Memory : 2 * DDR4 SO-DIMM / 2133 Mhz SDRAM up to 32 GB
Specs Devices	– 3.5” SATA Device * 4 & 2.5” SATA Device * 1
Colors	– Silver
Front I/O Port	– Power SW * 1 , Reset SW * 1 – Power LED * 1 , HDD R/W LED * 1 – USB 2.0 * 2
Rear I/O Port	– USB 3.0 * 6 – HDMI * 1 , DP * 1 , DVI-D * 1 – COM * 2 – RJ-45 * 2 – Mic * 1 , Line in * 1 , Line out * 1 – AC INPUT * 1
1U Power	– AC 90~240V input / 1U-300W / Support PFC / 190 (L) 100 (W) 40.5 (H) mm (FLEX)
FAN	– 4020 FAN * 4 / 7000 rpm / DC-12V-0.1A / 12 CFM – 4038 FAN * 2 / 12000 rpm / DC-12V-0.3A / 42 CFM
Expansion Slot	– Mini-PCI (PCI-E) Slot * 1
Accessory	– Power cord * 1 , PCI-E Riser Card * 1 – User’s Manual * 1 , CD 1 – Quick Installation Guide 1 – Screw Pack * 1 – CPU Cooler FAN (959528mm) * 1
Packing	– Net Weight：5.8 KG – Gross Weight：6.8 KG – Color Box Dimension：560 (W) x 600 (D) x 140 (H) mm
Safety	– CE , FCC
Applications	– Server System – Storage System – NAS System – Video Editing System
Warranty	–2 Year limited warranty

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
