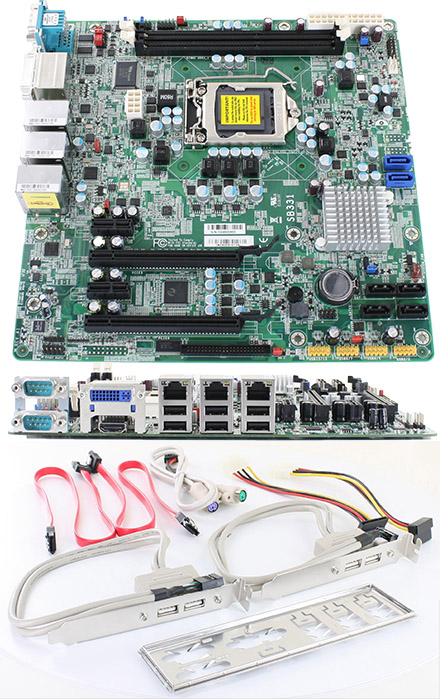

DFI SB331-IPM microATX Mainboard (LGA 1155, Intel Q67)

PRODUCT IS CURRENTLY NOT AVAILABLE !
DFI SB331-IPM microATX Mainboard (LGA 1155, Intel Q67)
  • Rev REV AA01
  • Intel Q67
  • LGA 1155

  • 3rd/2nd Gen Intel Core, Intel® Q67 Chipset
  • Dual channel DDR3 1600MHz DIMM up to 16GB
  • 1 DVI-I, 1 VGA, 1 LVDS
  • Multiple expansion: 1 PCIe x16, 1 PCIe x4, 6 SATA 2.0
  • Rich I/O: 2 Intel GbE, 14 USB 2.0, 4 COM

Share

999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
Processor LGA 1155 socket for:
- 3rd generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i7-3770 (8M Cache, up to 3.9GHz); 77W
Intel® Core™ i5-3550S (6M Cache, up to 3.7GHz); 65W
Intel® Core™ i3-3220 (3M Cache, 3.3GHz); 55W
Intel® Pentium® G2120 (3M Cache, 3.1 GHz); 65W
- 2nd generation Intel® Core™ processors (32nm process technology)
Intel® Core™ i7-2600 (8M Cache, up to 3.8 GHz); 95W
Intel® Core™ i5-2400 (6M Cache, up to 3.4 GHz); 95W
Intel® Core™ i3-2120 (3M Cache, 3.3 GHz); 65W
Intel® Pentium® G850 (3M Cache, 2.9 GHz); 65W
Chipset Intel® Q67 Chipset
Memory Four 240-pin DIMM up to 32GB Dual Channel DDR3 1600MHz
BIOS AMI SPI 64Mbit
Graphics Intel® HD Graphics (Open GL 3.0, DirectX 11.1)
Displaysupport: 1x HDMI
1x DVI-I
resolution up to 1920x1200 @ 60Hz
Expansion 2 x PCIe x16
2 x PCIe x1
Audio Realtek ALC262
Ethernet 1 x Intel® W82579LM with iAMT8.0 (10/100/1000Mbps)
2 x Intel® W82574 PCIe (10/100/1000Mbps
Rear I/O 3 x GbE (RJ-45)
2 x RS-232/422/485 (RS-232 w/ power) (DB-9)
6 x USB 2.0
1x HDMI
1x DVI-I
Internal I/O 8x USB 2.0
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
2x SATA 3.0
4x SATA 2.0
1x 36-bit DIO
Watchdog Timer System Reset, Programmable via Software from 1 to 255 Seconds
Power ATX - 8pin ATX 12V power / 24-pin ATX Power
Consuption: 81.87 W with i7-2600 at 3.40GHz and 1 x 2GB DDR3 DIMM
OS Support: Windows XP Professional x86 & SP3 (32-bit)
Windows XP Professional x64 & SP2 (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Enviroment Temperatur:
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity:
Operating: 5 to 90% RH
Storage: 5 to 90% RH
Dimensions: microATX form factor 244mm (9.6") x 244mm (9.6")
Packing List 1 SB331-IPM motherboard
2 USB cables
2 Serial ATA data cables
2 Serial ATA power cables
1 PS2 cables
1 I/O shield
Data sheet Download (PDF)
Data sheet Print view
