Jetway HBFBZ10-6412-B (Intel Elkhart Lake) [2x 2.5GbE, 2x USB3.1]

Jetway HBFBZ10-6412-B (Intel Elkhart Lake) [2x 2.5GbE, 2x USB3.1]
  • Intel® Elkhart Lake !
  • 4x 2.5GbE !
  • 12V DC-in !

  • Intel® Elkhart Lake SoC Processor
  • 1 * DDR4 3200MHz SODIMM up to 16GB
  • 4 * 2.5GbE
  • Support TPM2.0
  • 2 * USB , 1* HDMI, 1 * COM (RJ45 type)
  • 1 * M.2-2242, 1 * M.2-2230, 1 * M.2-3042
  • 12V DC-in




Share

389.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
 Model – HBFBZ10-6412-B
– HBFBZ10I-6412-B
– HBFBZ10-6412-E (EMMC)
– HBFBZ10I-6412-E (EMMC)
– HBFBZ10-6412-T (EMMC&TPM;)
– HBFBZ10I-6412-T (EMMC&TPM;)
 CPU/Chipset – Intel® Elkhart Lake SoC Processor (J6412)
 BIOS – AMI Flash ROM
 Memory – 1* DDR4 3200MHz SO-DIMM up to 16GB
 Network – 4* Intel i255V 2.5GbE
 Graphics – Intel® HD Graphics, shared memory
– 1* HDMI 2.0 (Max Resolution: 4096×2160@60Hz)
 Storage – 1* M.2 M-key (2242, PCIe Gen.3 x2/SATA interface) support NVME, (co-layout M.2 B-key)
 Expansion slot – 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface)
– 1* M.2 B-key (3042/3052, USB3.1 interface) co-layout M.2 M-key
(If you use M.2 B-key type-3042/3052 card, M.2 M-key type-2242 is not available; vice versa)

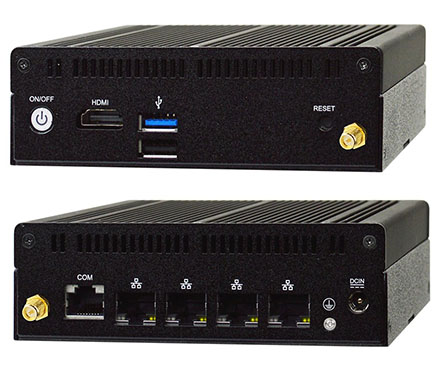

 Rear Panel I/O – 4* RJ45
– 1* COM (RJ45 type)
– 1* DC-in jack
 Front Panel I/O – 1* Power button + Power LED
– 1* Reset
– 1* USB3.1
– 1* USB2.0
– 1* HDMI (Max. 4096×2160@60Hz resolution)
 Internal Connector – 32GB eMMC onboard (by model)
– 1* SIM card holder
 Compliance – CE, FCC, RoHS, ErP Ready
 Power Source – MB : DC12V input
– Adapter : AC 90~240V input / DC12V-3.3A-40W output
 Compliance – CE, FCC, LVD, RoHS, ErP Ready
 Temperature – Operating Temperature: -20 ~ 60° C (Under the condition of using M.2 interface SSD)
– Storage Temperature: -20 ~ 80° C
– Humidity: Between 40% and 60%, non-condensing
 Dimensions – System: 125 (W) x 109 (D) x 39.5 (H) mm
 OS Support – Windows 10, Windows 11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
