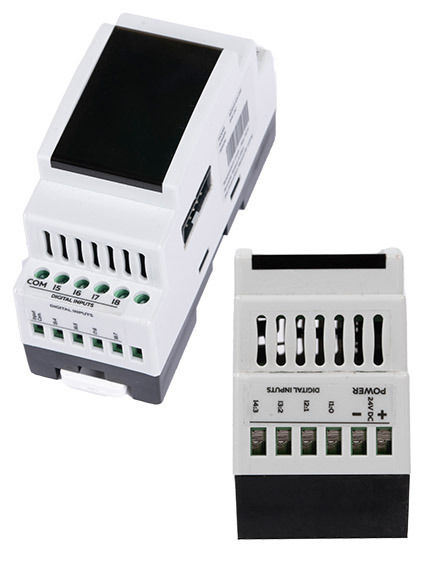

NORVI-EX-I8 (8 x Digital Inputs Sink / Source)

NORVI-EX-<b>I8</b> (8 x Digital Inputs Sink / Source)
  • Inputs up to 30V DC!
  • I2C !
  • MCP23008 !

Expansion Module Adding functions for controllers NORVI is always about on connectivity and expandability. This is the time to make use of Expansion port of NORVI Controllers. The series of expansion modules connects to NORVI IoT controllers via its I2C and UART connections. You can add more features to the NORVI Controller without huge customizations. NORVI provides true technology with reliability for industrial applications being worlds iot hardware manufacturer. We have included NB-IoT, LoRa and analog modules as expansions.

  • Optically Isolated Digital Inputs
  • Inputs can withstand voltages upto 36V DC
  • Internally Pulled Up
  • MCP23008 Port Expan [more]

    Share

74.95 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

Expansion Module Adding functions for controllers NORVI is always about on connectivity and expandability. This is the time to make use of Expansion port of NORVI Controllers. The series of expansion modules connects to NORVI IoT controllers via its I2C and UART connections. You can add more features to the NORVI Controller without huge customizations. NORVI provides true technology with reliability for industrial applications being worlds iot hardware manufacturer. We have included NB-IoT, LoRa and analog modules as expansions.

  • Optically Isolated Digital Inputs
  • Inputs can withstand voltages upto 36V DC
  • Internally Pulled Up
  • MCP23008 Port Expander
  • Address Configurable Over DIP Switch
  • 8 x Digital Inputs Sink / Source

Product Specification
Range of product NORVI EX
Product type I/O Expansion Module
Rated supply voltage 24V DC
Discrete input number 8 discrete input
Communication I2C
Main
Supply voltage limits 20.4….28.8V
Inrush current <=10A
Discrete logic input Sink or source
Discrete input voltage 24V DC
Voltage state 1 guaranteed =15 V for input
Voltage state 0 guaranteed <=5 V for input
Discrete input current 5 mA for input
Input impedance 4.7k Ohm for input
Local signaling 1 LED green for PWR
Electrical connection Removable screw terminal block for inputs and outputs
(pitch 5.08 mm)
Mounting support

Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
Plate or panel with fixing kit
Height 90.50 mm
Depth
56.60 mm
Width 60.60 mm
Product weight 0.18 Kg
Environment
Resistance to electrostatic discharge 4kV on contact
8kV on air
Resistance to electro magnetic fields 10 V/m (80 MHz …… 1GHz)
3 V/m (1.4 MHz …… 2 GHz)
1 V/m (2 MHz …… 3 GHz)
Immunity to microbreaks 10 ms
Relative humidity
10….95% without condensation in operation
IP degree of protection IP20
Operating altitude 0…2000m
Operating Temperature –40°C to +125°C
Storage altitude 0…3000m
Shock resistance 15 gn for 11 ms
Data sheet Download (PDF)
