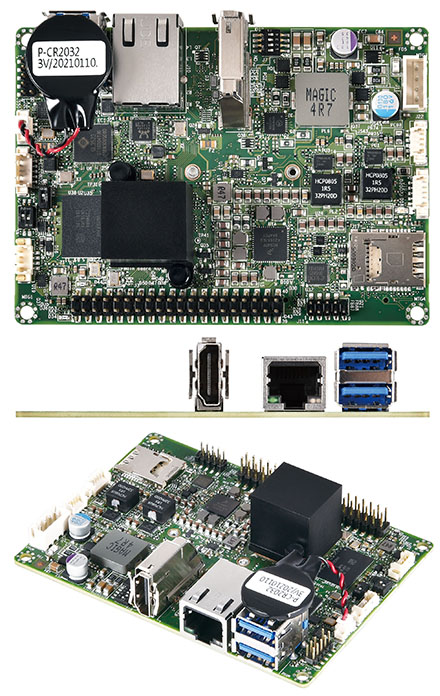

Mitac ND118T-8MD-1G8G-LVDS 2.5" SBC Pico-iTX (NXP i.MX8M Family, 1GB RAM, 8GB eMMC)

Mitac ND118T-8MD-1G8G-LVDS 2.5" SBC Pico-iTX (NXP i.MX8M Family, 1GB RAM, 8GB eMMC)
  • Pico-iTX !
  • NXP i.MX8M !
  • 1GB DDR4 !
  • 8GB eMMC !



  • NXP i.MX8M Dual Core & Quad Core Processor
  • 1GB LPDDR4 Memory (Options for 2GB / 4GB)
  • 8GB eMMC Storage (Options for 16GB / 32GB)
  • Support up to 1 x Giga LAN
  • Support up to 1 x display: 1x HDMI (4K)
  • Support 1 x Mini PCIe expansion slot
  • Support 1 x Raspberry Pi fully Compatible 40-pin Header
  • Up to 2 x USB 3.0, 2 x USB 2.0, 1 x COM port (RS232/422/485) 12~24V DC Power Input





Share

198.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
ND118T (ND118T) Specifications
MECHANICALFORM FACTORPico-iTX 2.5" SBC: 3.94" x 2.84" (100 mm x 72 mm)
SYSTEMPROCESSORNXP® i.MX8M Family: / i.MX8M Quad (4 x Cortex-A53 @ 1.3GHz) / i.MX8M Dual (2 x Cortex-A53 @ 1.3GHz)
CHIPSETi.MX8M SoC Integrated
SYSTEM MEMORYLPDDR4 Onboard Memory with Options: 1GB (800MHz), 2GB (1600MHz), 4GB (1600MHz)
GRAPHICSI.MX8 Integrated
ETHERNET1 x Realtek® RTL8211FD Giga LAN
AUDIORealtek® ALC5660
I/O CHIPSET-
EXPANSION SLOTMini PCIe Full / Half size (PCIe / USB)
STORAGEOnboard eMMC with Options for 8GB / 16GB / 32GB
WATCHDOG TIMERYes
GRAPHICSVGA-
DVI-
HDMIUp to 4K (4096 x 2160) @60 Hz
DISPLAYPORT-
LVDSUp to FHD (1920 x 1080)@60 Hz
eDP (Option)-
REAR I/OUSB2 x USB 3.2 Gen1
DISPLAY I/O1 x HDMI 2.0
AUDIO I/O-
LAN I/O1 x RJ-45
SERIAL PORT-
PS/2 PORT-
OTHERS-
INTERNAL CONNECTORSSTORAGE1 x Micro-SIM or Micro SD combo card slot
USB1 x USB 2.0 Port Header
/ 1 x USB 2.0 OTG port Header
DISPLAY I/O1 x Backlight Connector
/ 1 x LVDS
/ 1 x LCD PWR Selection Header
AUDIO I/O1 x Audio Header (Mic-in & Line-out)
SERIAL PORT1 x RS232 / 422 / 485
GPIO-
FAN-
POWER1 x 12~24V 4-pin Power Connector
OTHERS1 x 40-pin General Purpose Header (Fully Compatible with Raspberry Pi 40-pin Header) *Raspberry Pi is a trademark of the Raspberry Pi Foundation
POWER REQUIREMENTPOWER INPUTDC-in 12V~24V (4-pin Power Connector)
ENVIRONMENTALOPERATING TEMPERATURE-10°C~65°C (14~149°F)
STORAGE TEMPERATURE-20 ~ 70°C (-4 ~158°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / FCC Class B
OSOS SUPPORT Android 9 Pie (Kernel version 4.14.98) BSP Support / (Remark: Android is suggested for 4G memory MB SKU) / Yocto Gatesgarth 3.2 is preinstalled (BSP Support)
PACKING LISTPACKAGE1 x Motherboard
