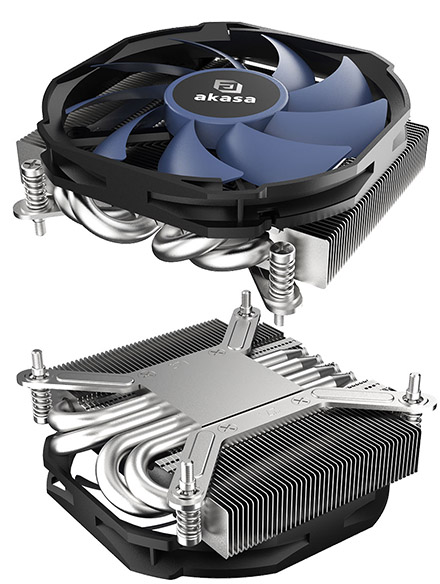

AKASA ALUCIA H4i LowProfile Fan f. Intel Platforms (AK-CC7501BP01)

AKASA ALUCIA H4i LowProfile Fan f. Intel Platforms  (AK-CC7501BP01)
  • High quality !
  • 29.5mm height !
  • maximum TDP of 95W !
  • AK-CC7501BP01 !

Premium 29.5mm height low profile CPU with four heatpipes with nickel-plated copper base and 92mm photic blue edition fan. Coupled advanced blade technology, intelligent PWM speed control. Designed for Intel systems and CPUs with a maximum TDP of 95W.



Share

34.95 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days

Add to cart
Socket Type Intel LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA1700
Suggestion TDP (W) 95
Cooler Dimension 94 x 94 x 29.5 mm
Heatsink Material Aluminium fins with four copper heatpipes
Installation Mounting screw and backplate
Weight 230.6g
Product Code AK-CC7501BP01
Fan Dimension 92 x 92 x 12 mm
Bearing Ball Bearing
Fan Speed 800 - 3600 RPM
Max Airflow 40 CFM
Max Air Pressure 2.2 mm-H2O
Noise Level 17 - 35.8 dB(A)
Current Rating for Fan 0.28A
Voltage Rating for Fan DC 12V
Fan Connector 4-pin PWM
Fan Life Expectancy 40,000 hours
Data sheet Download (PDF)
Data sheet Print view
