AVerMedia D315AOP-32G BoxPC (NVIDIA Jetson AGX Orin)

AVerMedia D315AOP-32G BoxPC (NVIDIA Jetson AGX Orin)
  • NVidia Jetson AGX Orin !

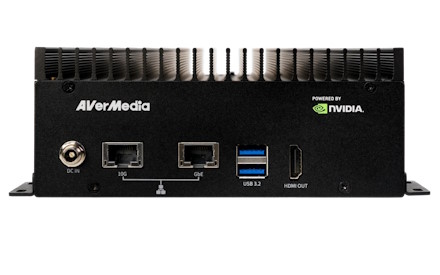

AVerMedia AI Box PC D315AOP built with NVIDIA® Jetson AGX Orin™ module, which brings next-level AI performance and power-efficient capability for all autonomous machines. This efficient SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

D315AOP includes a 120-pin high-speed connector for connecting MIPI SerDes cameras, which can fulfill the demand for AMRs. In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its
[more]

Share

2389.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

AVerMedia AI Box PC D315AOP built with NVIDIA® Jetson AGX Orin™ module, which brings next-level AI performance and power-efficient capability for all autonomous machines. This efficient SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.

D315AOP includes a 120-pin high-speed connector for connecting MIPI SerDes cameras, which can fulfill the demand for AMRs. In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its compact size, D315AOP furnishes a PCIe slot for multi-function expansion and excellent compatibility with Wi-Fi 6 and 5G.

  • Fanless design to prevent dust accumulation
  • Embedded NVIDIA® Jetson AGX Orin module
  • 1x GbE & 1x 10G RJ-45
  • 10GigE Vision camera connector
  • 1x PCIe slot for multi-function expansion
  • 1x M.2. E key for Wi-Fi 6E
  • 1x M.2. M key for SSD and capture
  • Operating temperature: -25°C ~50°C (TBD)
  • Dimension (Fanless): 160*136.9*65mm

Model

D315AOP-32G

NVIDIA Jetson SoM

NVIDIA® Jetson AGX Orin™ 32G module



Networking

1x GbE RJ-45

1x 10G RJ-45

1x M.2 E key  (for Wi-Fi 6E)

Display Output

1x HDMI 2.0 (3840x2160 at 60Hz)



Temperature

Operating temperature: -25°C~50°C (TBD)

Storage temperature: -40°C ~ 85°C

Relative humidity: 40 °C @ 95%, Non-Condensing



USB

1x USB 2.0 Micro-B for recovery

2x USB 2.0 Type-A

2x USB 3.2 Type-A

Audio

Intel HD Audio analog connector

Storage

1x micro-SD card slot



Expansion Header

40-pin (UART, SPI, CAN, I2C, I2S, GPIOs)

1x M.2 M key (for SSD or AVerMedia capture card:CN311-H, CN312SW, CN312MW)、1x Micro SIM socket

1x PCIe x16 (only support x8 PCIe lanes)

1x CAN bus with transceiver, 120-pin (for MIPI SerDes)



Input Power

DC in jack on board:  54V/2.78A adapter

DC Range 12~54V (7~1.95A)

ATX 4-pin: 12~54V (10.8~2.4A)

Power Cord

US/JP/EU/UK/TW/AU/CN

Thermal Solution

Fanless solution

Buttons

Power and Recovery

RTC Battery

Support RTC Battery and Battery Life Monitoring by MCU

Dimensions

160mm * 136.9mm * 65mm

Certifications

CE, FCC, VCCI, KC (TBA)

Package

1x D315AOP 32G

1x Adapter 54V/2.78A and Power cord

Data sheet Download (PDF)
Data sheet Print view
Jetpack 6 Installation Download (PDF)
