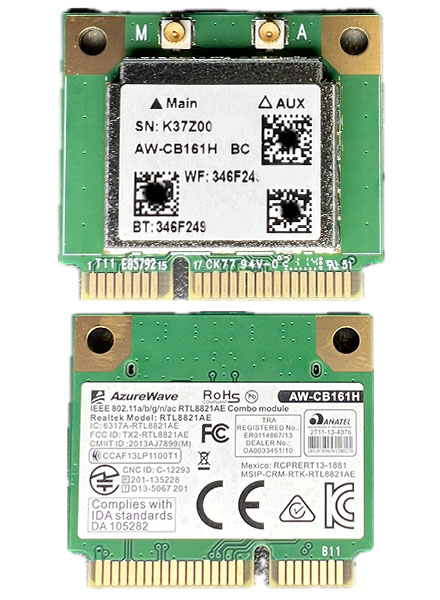

Wireless LAN / Bluetooth Mini-PCI Express [AzureWave AW-CB161H]

Wireless LAN / Bluetooth Mini-PCI Express [AzureWave AW-CB161H]
  • WLAN !
  • Bluetooth !
  • Half-Height Mini-PCIe !
  • 2.4/5.0 GHz !

The Azurewave AW-CB161H IEEE 802.11 a/b/g/n/ac PCIE WIFI with Bluetooth 4.0 class I combo module is a highly integrated wireless local area network (WLAN) solution. It combines with Bluetooth 4.0 class I and provides a complete 2.4GHz Bluetooth system which is fully compliant to Bluetooth 4.0 and v2.1 that supports EDR of 2Mbps and 3Mbps for data and audio communications. It enables a high performance, cost effective, low power, compact solution that easily fits onto the PCI Express and USB Combo half mini Card.

  • 2.4 GHz GHz and 5 GHz
  • Data Interface: Wifi: PCIe / BT:USB
  • Form Factor: mPCIe - half size (30mm width / 27mm length)
  • Wi-Fi Standard: 802 [more]

    Share

7.95 EUR
incl. 19% VAT, plus shipping
In Stock (194 pcs)
Add to cart

The Azurewave AW-CB161H IEEE 802.11 a/b/g/n/ac PCIE WIFI with Bluetooth 4.0 class I combo module is a highly integrated wireless local area network (WLAN) solution. It combines with Bluetooth 4.0 class I and provides a complete 2.4GHz Bluetooth system which is fully compliant to Bluetooth 4.0 and v2.1 that supports EDR of 2Mbps and 3Mbps for data and audio communications. It enables a high performance, cost effective, low power, compact solution that easily fits onto the PCI Express and USB Combo half mini Card.

  • 2.4 GHz GHz and 5 GHz
  • Data Interface: Wifi: PCIe / BT:USB
  • Form Factor: mPCIe - half size (30mm width / 27mm length)
  • Wi-Fi Standard: 802.11a/b/g/n/ac
  • Bluetooth Standard: 4.0
  • Data Streams: 1T1R
  • Max output power: 16 dBm
  • Chipset: Realtek RTL8821AE
  • Operating Temperature: 0-70 °C
  • Driver Support: Windows 7/8/10 / Linux kernel 3.18

Data sheet Download (PDF)
Data sheet Print view
