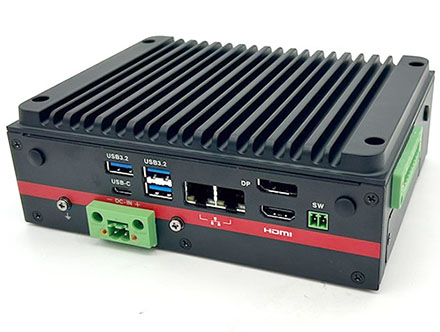

Mitac MB2-10ANS-N305-AC (i3-N305 Processor, up to 8x 3.8 GHz, 2x LAN, Hailo-8) [FANLESS]

Mitac MB2-10ANS-N305-AC (i3-N305 Processor, up to 8x 3.8 GHz, 2x LAN, Hailo-8) <b>[FANLESS]</b>
  • Intel Alder Lake !
  • Intel® i3-N305 !
  • 2x Gigabit LAN !
  • Hailo-8 !


  • Intel® Alder Lake-N N97 (4C) / i3-N305 (8C8T) Processor
  • 1 x DDR5 SO-DIMM and support up to 16GB
  • Support Dual display for HDMI, and DisplayPort
  • 2 x Intel® i226 2.5Gigabit Ethernet
  • 1 x M.2 B Key, 1 x M.2 M Key, 1 x M.2 E Key slot
  • 2 x USB 2.0, 3 x USB 3.2 Gen2 and 1 x USB Type C
  • 8V~26V wide voltage power input
  • Support Hailo-8™ AI Accelerator
  • Support up to 26 TOPs
  • Support Hailo-8™ Software Development Kit
  • 60W AC to DC Adaptor included




Share

619.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
SYSTEMCPUIntel® Alder Lake-N N97 (4C) / i3-N305 (8C8T) Processor
CHIPSETIntel® SoC Integrated
SYSTEM MEMORYDDR5 4800 MHz / 1 x 262-pin SO-DIMM / Max. 16GB (Non-ECC)
GRAPHICSIntel® UHD Graphics
DISPLAY INTERFACEDisplayPort 1.4 / HDMI 1.4
STORAGE SLOT1 x 2.5 HDD / SSD (Default w/ HDD Bracket) / 1 x M.2 2280 NVMe/SATA SSD / 1 x M.2 2242 SATA SSD
ETHERNET2 x Intel® I226-V 2.5G LAN
AUDIORealtek® ALC256
I/O CHIPSETNuvoton NCT6126D
TPMNuvoton NPCT760AABYX TPM2.0
EXPANSION SLOTStorage/LTE/5G Slot: 1 x M.2 2242/3042/3052 B Key (USB2.0/PCIeX1/SATAIII) / Storage: 1 x M.2 2280 M Key (PCIeX1/SATAIII) / Wireless: 1 x M.2 2230 E key (PCIeX1, USB2.0)
INTERNAL SPEAKER1 x Buzzer
INDICATORPower Button / Power LED / HDD LED
FRONT I/O3 x RS232 (i3-N305 SKU) 、1 x RS232 (N97 SKU) / 2 x USB 2.0
/ 1 x RS232 / 422 / 485
/ 1 x Line-out
REAR I/O1 x 2-pin Header Remote Power on / off
/ 1 x DP1.4 / 3 x USB 3.2 Gen2 Type A / 1 x USB Type C (Support PD15W, 5V/3A, DP Alt mode, USB3.2 Gen1) / 1 x 2-pin Terminal Block Power Input / 2 x SMA Antenna hole with rubber cap / 1 x HDMI 1.4
/ 2 x RJ-45
POWER REQUIREMENTPOWER INPUT8~26V Wide Range DC Input w/ Terminal Block Connectivity
POWER ADAPTEROptional DC12V / 5A / AC / DC / 60W adapter (For AC SKU)
MECHANICALTHERMAL DESIGN Fanless
MOUNTINGWallmount / 75 mm x 75 mm VESA Holes & Din Rail Mount + Transfer Plate Combo Kit (Optional)
DIMENSIONS (W X D X H) / Material 6.7” x 5.2” x 2.2” (171 x 133 x 57 mm) / Bezel and chassis: Steel / Top cover: Die casting
WEIGHT2.1kg (4.6 lb)
ENVIRONMENTALOPERATING TEMPERATURE-25°C to 60°C / with 0.7m/s Air Flow and Wide Temperature Memory/Storage
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 90% R/H (Non-condensing)
STORAGE HUMIDITY10% ~ 95% @85°C non-condensing
VIBRATION RESISTANCEOperating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64)
SHOCK RESISTANCEOperating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
CERTIFICATIONCE / FCC Class A
OSOS SUPPORTLinux (support by request) / Windows® 10 64-bit / Windows® 11 64bit
PACKING LISTPACKAGE1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets
/ 2 x 2 pin Terminal Block Power Connector / 1 x SATA and SATA power cable / 1 x 10-pin Terminal Block Male Connector (for i3-N305 SKU only) 60W AC to DC Adaptor
