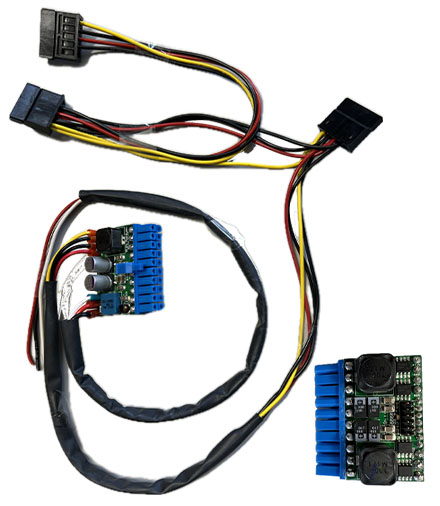

M3-ATX-HV 6-34V DC/DC (120 Watt) 3x SATA power connector, open lices [SPECIAL ITEM]

M3-ATX-HV 6-34V DC/DC (120 Watt) 3x SATA power connector, open lices [<b>SPECIAL ITEM</b>]
  • SONDERPOSTEN !
  • Shutdown controller !
  • Automotive ATX PSU
  • Survives engine cranks

M3-ATX-HV is an intelligent vehicle ATX power supply. Designed to provide power and to control the ON/OFF switch of a motherboard based on ignition status, M3-ATX is a wide input (6-34V) ATX power supply capable of surviving tough engine cranks (down to 5.7V) as well as transient over-voltage situations.

M3-ATX has 8 user selectable microcontroller driven timing modes, allowing you to choose up to 8 ignition/shutdown timing schemes. By removing all user-selectable jumpers, M3-ATX becomes a traditional PSU with no ignition control and it can be used in non-vehicle applications.

Even if your computer is totally OFF, a PC will still consume few hundered milliwatts, needed [more]

Share

38.95 EUR
incl. 19% VAT, plus shipping
In Stock (47 pcs)
Add to cart

M3-ATX-HV is an intelligent vehicle ATX power supply. Designed to provide power and to control the ON/OFF switch of a motherboard based on ignition status, M3-ATX is a wide input (6-34V) ATX power supply capable of surviving tough engine cranks (down to 5.7V) as well as transient over-voltage situations.

M3-ATX has 8 user selectable microcontroller driven timing modes, allowing you to choose up to 8 ignition/shutdown timing schemes. By removing all user-selectable jumpers, M3-ATX becomes a traditional PSU with no ignition control and it can be used in non-vehicle applications.

Even if your computer is totally OFF, a PC will still consume few hundered milliwatts, needed to monitor PC ON/OFF status. When the computer is in the suspend/sleep mode, it will consume even more power, because the RAM needs to be powered at all times. The power consumption in the suspend mode is few watts. No matter how big your battery is, it will eventually drain your battery in a matter of days.

While in deep sleep mode, M3-ATX constantly monitors your car battery voltage levels, preventing deep discharge situations by automatically shutting down until battery levels reach safe levels again.

No more dead batteries, no more computer resets during engine cranks, along with multiple timing schemes, small formfactor and very competitive price makes the M3-ATX the premier solution for ATX vehicle power supply solutions.

Working from 8V Power input (6V for short time) !



The M3-ATX also is capable for P4(M)- and AMD-systems.
Scope of Supply:
- M3-ATX-HV PSU
- 3x SATA Power Connector Cable
- 3x cables f. Plus, Ignition Plus, Ground (Minus)

Data sheet Download (PDF)
