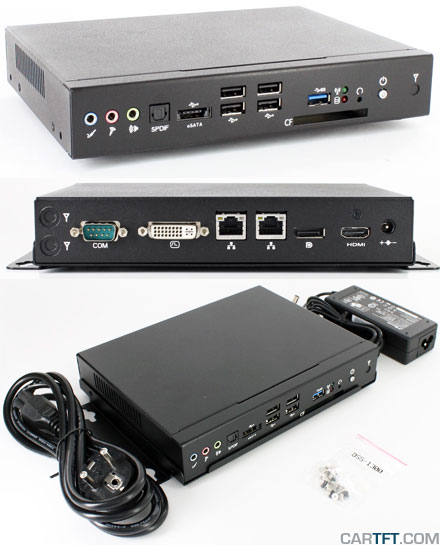

DSS-1300 Barebone (Intel Core i3/i5/i7 Mobile, eSATA, HDMI/DP, 2x Mini-PCIe, 2x LAN, USB3.0, CF) [REFURBISHED]

PRODUCT IS CURRENTLY NOT AVAILABLE !
DSS-1300 Barebone (Intel Core i3/i5/i7 Mobile, eSATA, HDMI/DP, 2x Mini-PCIe, 2x LAN, USB3.0, CF) <b>[REFURBISHED]</b>

Remnant offer. Refurbished. Traces of usage / scratches on enclosure. 2 years warranty.

Because of its size (200 x 153 x 35 mm !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

For a full PC you need in addition :
- Intel Core i3/i5/i7 Mobile CPU (PGA-988)
- SO-DDR-III RAM
- 2.5" HDD/SSD or CompactFlash

Features:
- Compact Size with Intel Calpella Platform
- Support Intel Core i3 / i5 / i7
- 2 x SO-DIMM DDR3 800/1066/1333 up to 8GB
- 1 x DVI-I, 1 x HDMI, 1 x GbE & 5.1 channel audi [more]

Share

249.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart

Remnant offer. Refurbished. Traces of usage / scratches on enclosure. 2 years warranty.

Because of its size (200 x 153 x 35 mm !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

For a full PC you need in addition :
- Intel Core i3/i5/i7 Mobile CPU (PGA-988)
- SO-DDR-III RAM
- 2.5" HDD/SSD or CompactFlash

Features:
- Compact Size with Intel Calpella Platform
- Support Intel Core i3 / i5 / i7
- 2 x SO-DIMM DDR3 800/1066/1333 up to 8GB
- 1 x DVI-I, 1 x HDMI, 1 x GbE & 5.1 channel audio
- 1 x eSATA & USB Combo Connector
- 3-in-1 Card Reader and 5 x USB
- Optional WiFi or 3G Module

Dimensions / Weight 200mm W x 153.3mm D x 35mm H, 1.4kg
CPU Intel Core i3, i5, i7 mobile processors 2nd Generation
Socket G (rPGA988A)
[eg. i5-2540M, Pentium B950, i3-2310M, i3-2350M, i5-2410M, i5-2520M, i7-2620M, i7-2630QM]
Chipset / FSB Intel QM67 Express
RAM 2x SO-DDR-3 RAM (up to 8GB 800/1066/1333)
Graphics Intel HD Graphics ( requires compatible CPU with built-in GPU )
Expansion - 2x Mini-PCIe (Half-size)
- 1x SIM card slot
OS Support Windows, Linux
Front I/O 3 x 3.5mm Phone Jack, support 5.1 channel audio output
1x S/PDIF Output
1 x eSATA and USB 2.0 combo connector
4 x USB 2.0
1 x USB 3.0
1 x CF slot
1 x Power LED
1 x Storage status LED (HDD/Card Reader)
1 x WiFi status LED
1 x Reset Button
1 x Power Button
Drive bays 1 x 2.5" SATA HDD/SSD drive bay
Rear I/O 1 x DC JACK for DC19V single power input
1 x DVI-I for DVI-D or VGA output
1 x HDMI
1 x DP
2 x RJ-45 GbE port
1 x COM Port support RS-232/422/485 (offer +5V/+12V output selection)
1 x WiFi external antenna (optional)
1 x 3G external antenna (optional)
Scope of supply - DSS-1300 Barebone with mounting unit
- AC/DC Adapter + EU power cord
Data sheet Download (PDF)
Data sheet Print view
