Type

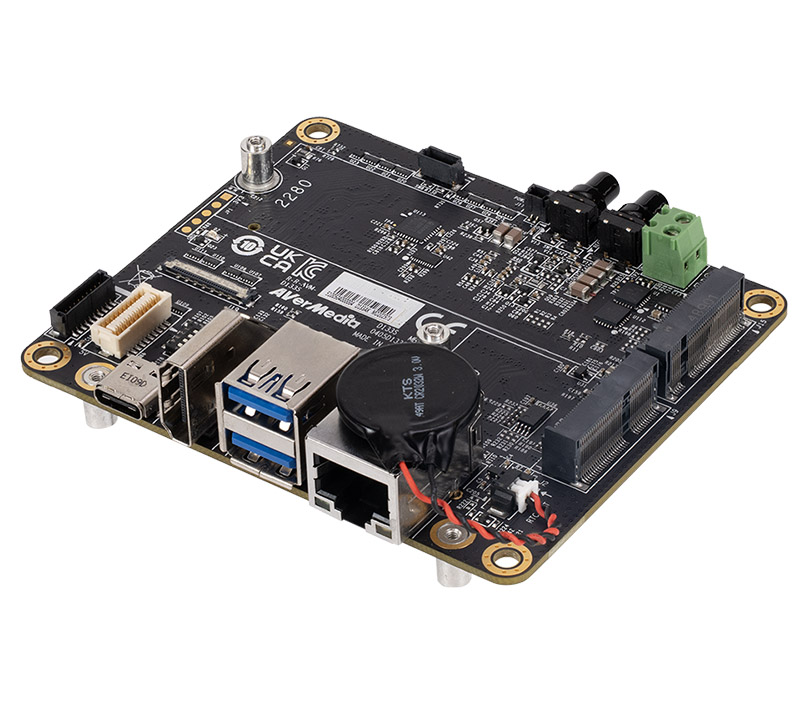

Carrier Board

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Orin NX/ Orin Nano module
Super Mode Support

Networking

1 x GbE RJ-45
1 x M.2. key E 2230 for wifi

Display Output

1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano

Temperature

Operating temperature -40°C~85°C
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs (internal)

2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch

USB

1 x USB 2.0 type C for recovery
2 x USB 3.2 Type-A

Storage

2x NVMe M.2 Key M 2280 (1x only support S1 Type Top side component SSD)

TPM

Built in Infineon SLB 9672 TPM Chip

Expansion Header

20 pins: 2x I2C, 1x UART, 9x GPIOs 15 pins: support OOB module (optional, sold separately)*
5 pins & 30 pins: support 4G/5G functions via daughter board (optional, sold separately)*

Security

TPM 2.0 supported

Input Power

3.5mm Screw Terminal; 12V/5A, 9V~24V is recommended.

Power Cord

US/JP/EU/UK/TW/AU/CN (optional)

Thermal solution

Fan solution (12V fan wafer)

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

90mm x 76mm (3.54” x 2.99”) W/O mounting hole
Weight: 70g

Certifications

CE, FCC, VCCI, KC (TBD)
